QFP100 to DIP100 Adapter Programming Socket

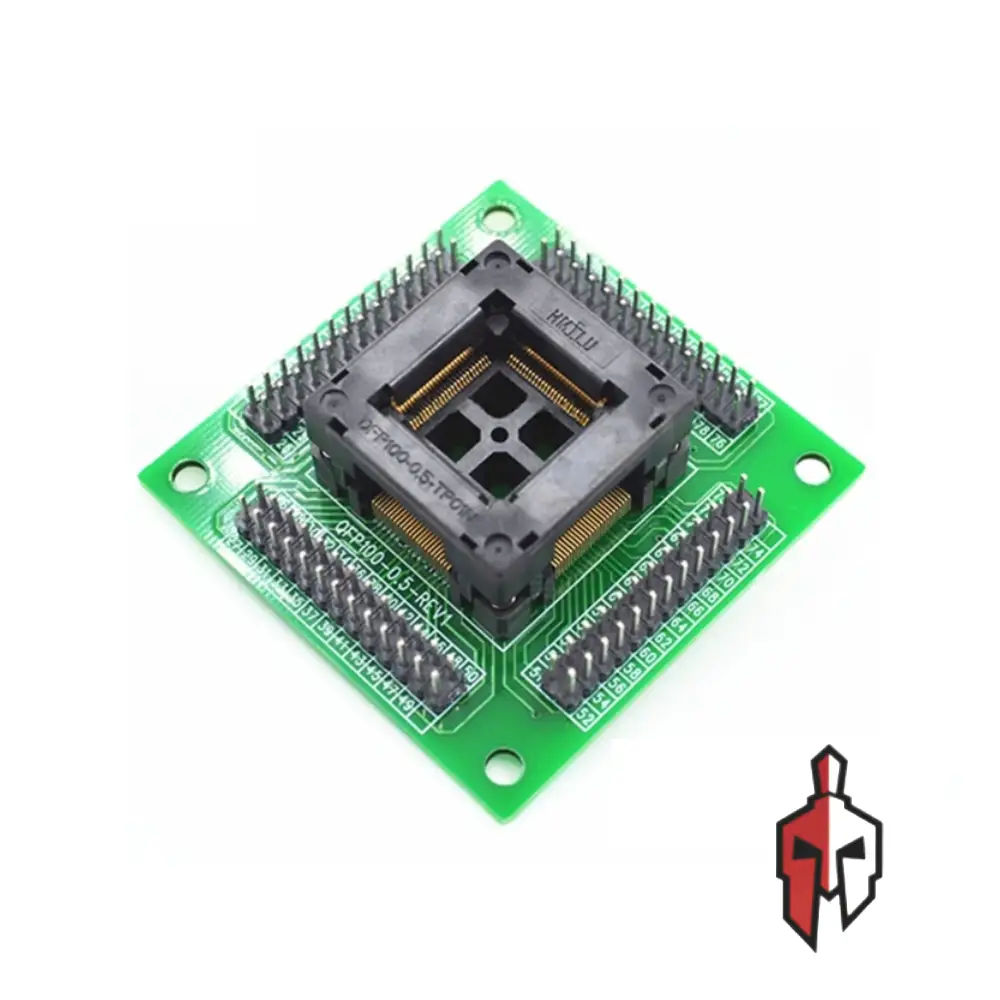

The QFP100 to DIP100 Adapter is a precision test and programming socket designed to convert surface-mount QFP (Quad Flat Package) ICs into DIP (Dual In-line Package) format for easy prototyping, testing, and programming. This essential tool eliminates the need for soldering SMD components directly onto PCBs during development, allowing engineers and hobbyists to test and program QFP100 ICs using standard breadboards, universal programmers, and DIP-compatible equipment.

Compatible with multiple QFP variants including TQFP100, LQFP100, and FQFP100 packages, this adapter features a high-quality test socket with reliable contact pins that ensure consistent electrical connections. The 0.5mm pin pitch design accommodates industry-standard 100-pin QFP ICs with 14×14mm body size, making it suitable for microcontrollers, FPGAs, DSPs, and other complex integrated circuits commonly used in embedded systems development.

The adapter includes a sturdy PCB base that converts the compact QFP footprint to standard 2.54mm pitch DIP pins, providing excellent mechanical stability and signal integrity. Perfect for firmware development, IC testing, failure analysis, and small-scale production programming, this socket saves time and reduces the risk of damaging expensive components during iterative development processes.

Specification :

• Type: Test & Programming Socket (with PCB)
• Compatible Packages: QFP100, TQFP100, LQFP100, FQFP100
• Pin Count: 100 pins
• Pin Pitch: 0.5mm
• Applicable IC Body Size: 14mm × 14mm
• IC Tip-to-Tip Distance: 16mm × 16mm
• Output Format: DIP100 (2.54mm pitch)
• Socket Type: Clamshell
• PCB Material: FR-4 fiberglass
• Contact Material: Gold-plated copper alloy
• Operating Temperature: -40°C to +85°C
• Insertion Cycles: 50+ cycles (typical)
• Applications: Programming, testing, prototyping
• Compatibility: Universal programmers, breadboards
