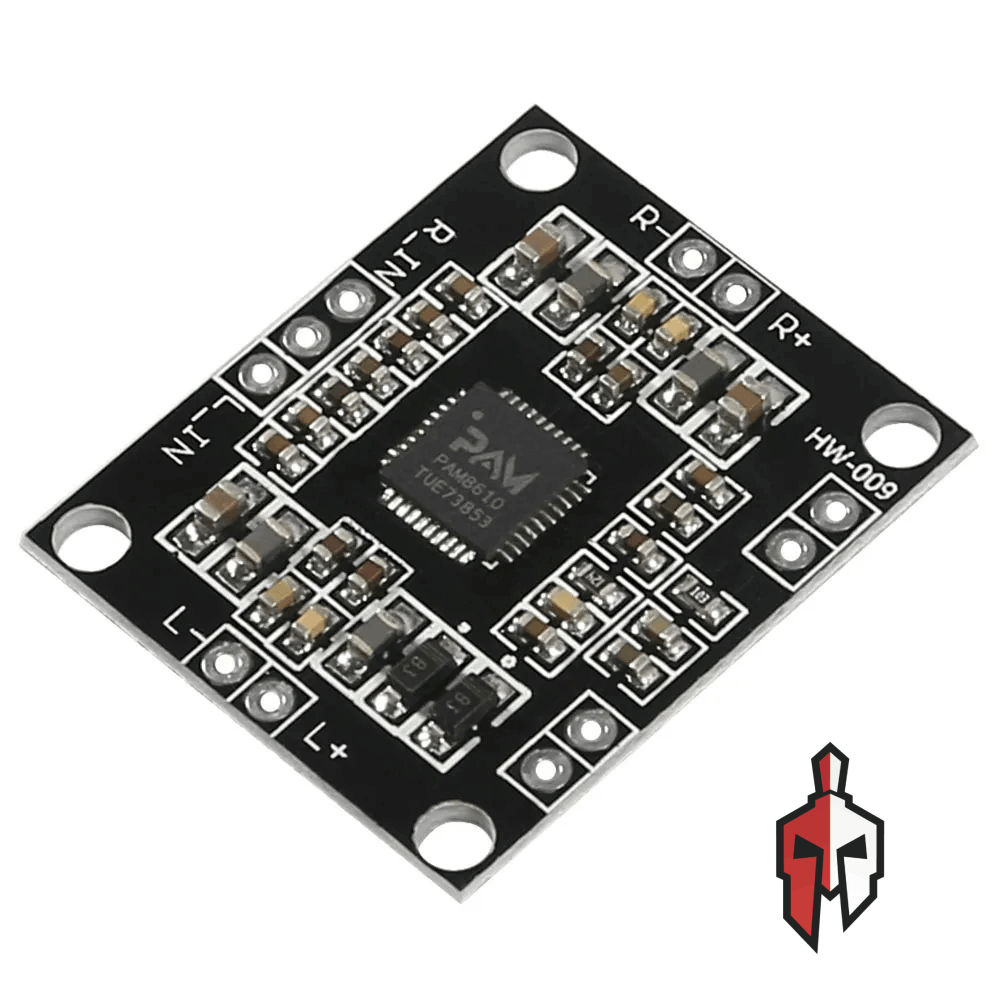

PAM8610 15Wx2 Stereo Audio Amplifier Board

The PAM8610 amplifier module is a 2×15W, two-channels, stereo based Class – D type Amplifier module. It can be used in any DIY or audio-related projects for cost and board space-saving purposes.

This amplifier module uses a PAM8610 driver with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRP that is very useful for high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM8610 runs on a 7V to 15V supply. It is more efficient in terms of power than the other competitors ‘ ICs.

Specifications:

• Main Chip: PAM8610
• Power Range: DC 6V-15V (self-protection)
• Recommended Voltage: DC 12V(2A)
• Output Power: 10Wx2(8Ω) 15Wx2(4Ω)
• Frequency Response: 20HZ-15KHZ
• Static Current: 20MA (DC12V)
• SNR: 90% Recommended
• Speakers: 10-100W
• Input Impedance: 15K
• Output Impedance: 4-8Ω
• Harmonic Distortion: <0.1%
• Dimensions in mm (LxWxH): 30 x 25 x 4
• Weight(g): 12
