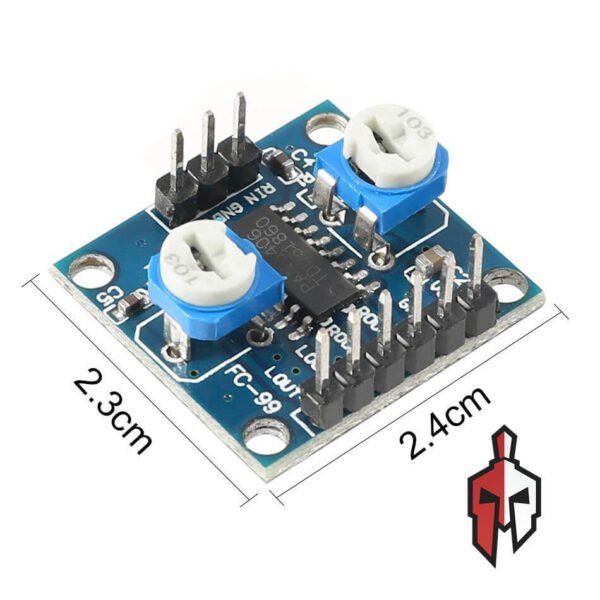

PAM8406 5W Audio Amplifier

The PAM8406 is a 5W audio amplifier with an alternative option between Class-D and Class-AB output which makes PAM8406 very ideally for the applications efficiency-EMI compatible. PAM8406 offers low THD+N, high SNR allowing it to achieve high quality sound reproduction.

Specifications:

• Supply Voltage: 5VDC
• Alternative Output: Class-D or Class-AB
• 5W Output at 10% (Total Harmonic Distortion) THD with a 2Ω Load and 5V Power Supply at Class-D Mode
• 3W Output at 10% THD with a 4Ω Load and 5V Power Supply
• Filterless, Low Quiescent Current and No EMI
• Low THD+N at Fully Output Range
• Superior Low Noise
• Efficiency up to 90% with Class-D Mode
• No Pop At Turn-on/off
• Fully Short Circuit Protection With Auto Recovery
• Thermal Shutdown
