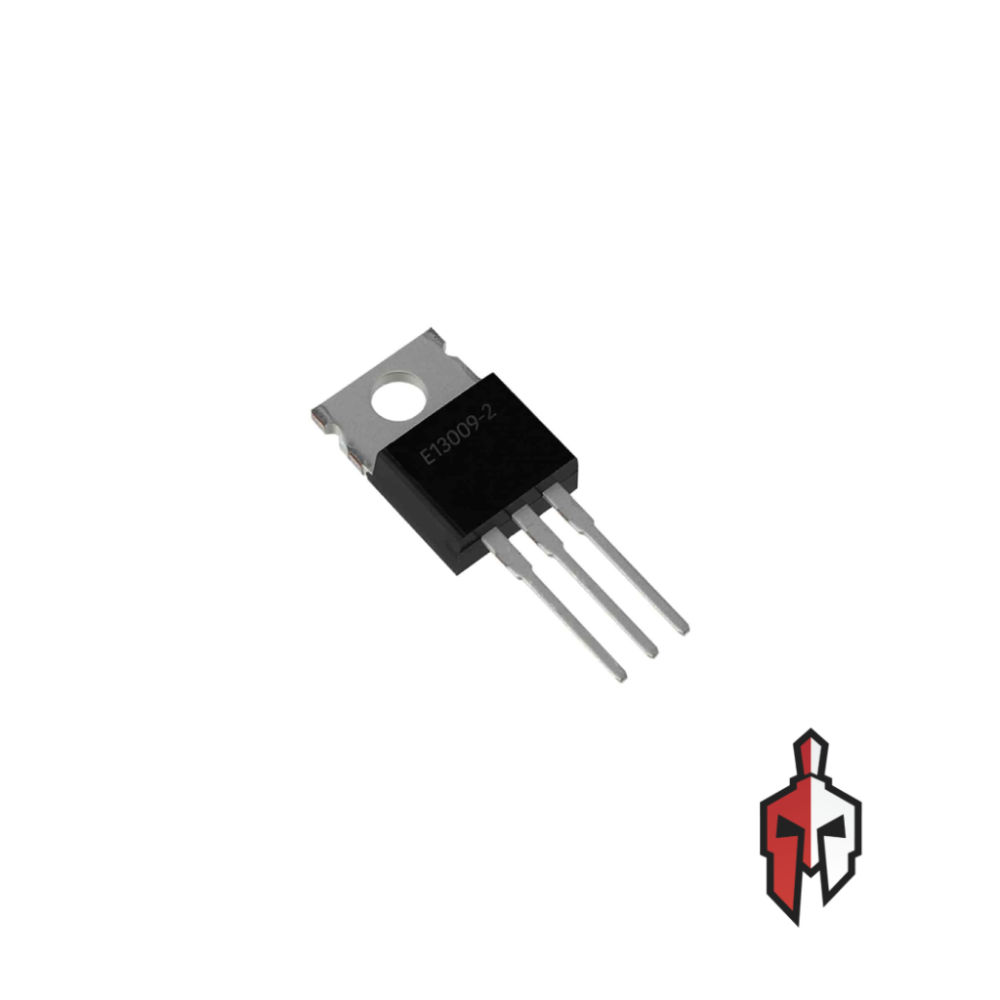

MJE13009 NPN Transistor
Rs 190.00
Quick Info :
The MJE13009 is a high-voltage, high-current NPN bipolar junction transistor (BJT) designed for power switching and amplifier applications. It is widely used in high-frequency power supplies, inverters, and motor control circuits due to its high collector-emitter voltage rating and fast switching
Specification :
- Transistor Type : NPN
- Collector-Emitter Voltage (Vce) : 400V
- Collector-Base Voltage (Vcb) : 700V
- Emitter-Base Voltage (Veb) : 9V
- Collector Current (Ic): 12A (continuous), 24A (peak)
- Power Dissipation (Pd) : 100W
- DC Current Gain (hFE) : 5 – 40
- Transition Frequency (ft) : 20MHz
