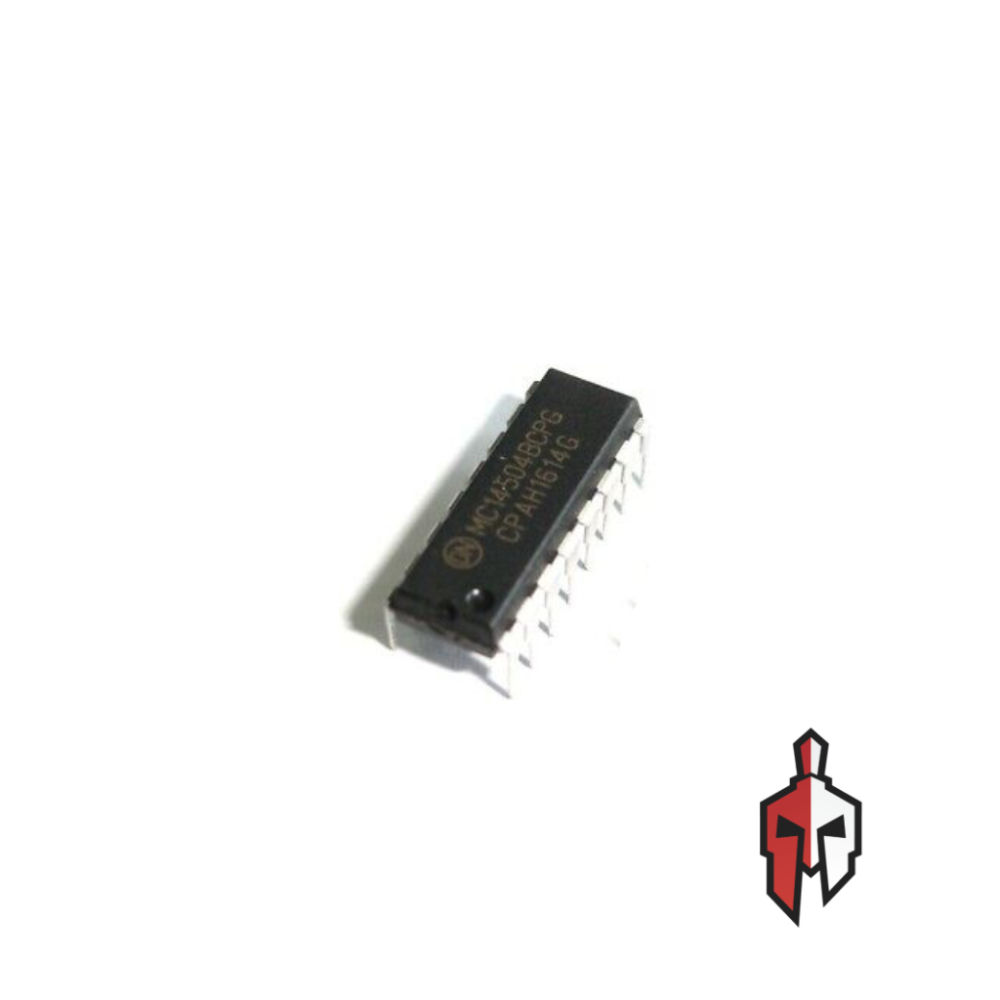

MC14504B Hex Level Shifter
Rs 150.00
Quick Info :
- Logic Family : CMOS
- Number of Channels : 6
- Supply Voltage : 3V – 18V
- Input Voltage Range : 0V – Vcc
- Output Voltage Range : 0V – Vcc
- High-Level Input Voltage : 0.7 × Vcc
The MC14504B is a hex level shifter designed to convert logic levels between different voltage domains. It is particularly useful in applications where TTL, CMOS, or other logic families need to interface with different voltage levels. The IC is capable of shifting low-voltage signals
Specification :
- Logic Family : CMOS
- Number of Channels : 6
- Supply Voltage : 3V – 18V
- Input Voltage Range : 0V – Vcc
- Output Voltage Range : 0V – Vcc
- High-Level Input Voltage : 0.7 × Vcc
- Low-Level Input Voltage : 0.3 × Vcc
- Propagation Delay : 50ns
