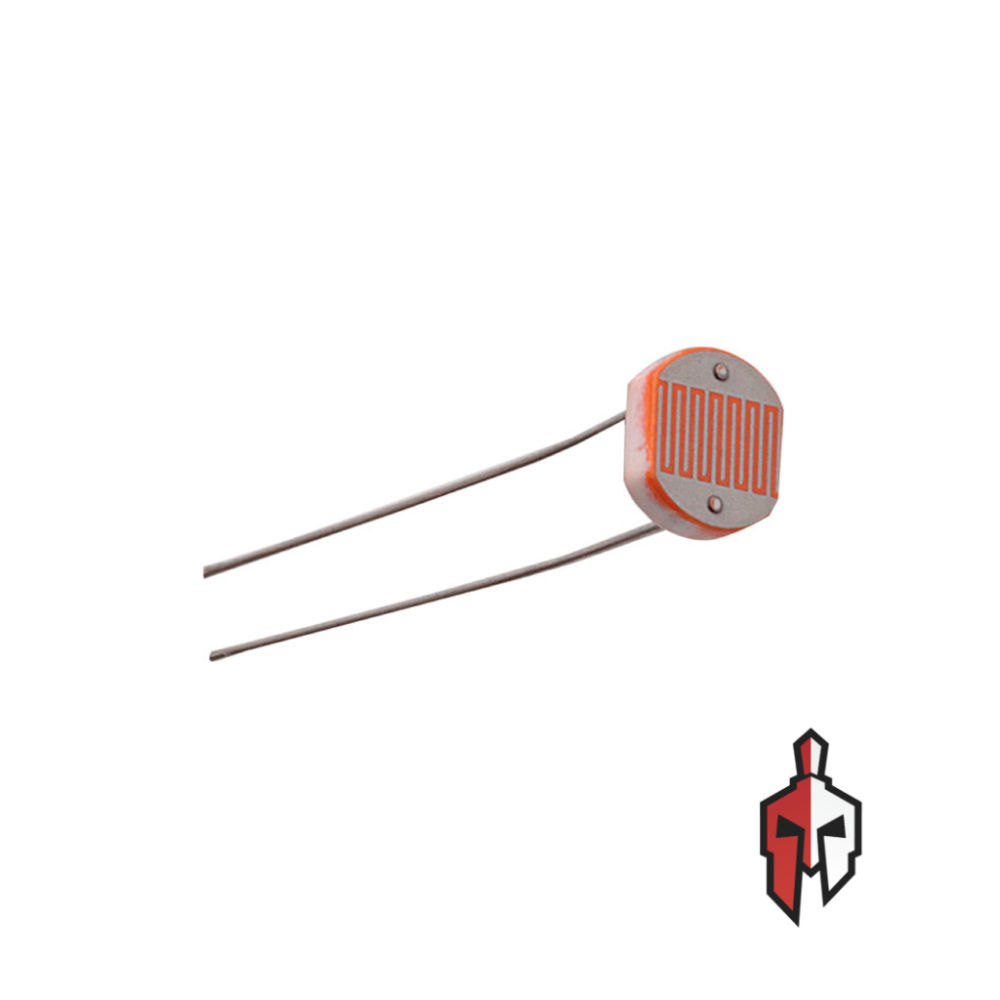

LDR Sensor 8mm
Rs 45.00
Quick Info :
- Power Rating : 100mW
- Operating Voltage : Compatible with 3.3V to 5V systems
- Diameter : 8mm
- Material : Cadmium Sulfide (CdS)
- Dark Resistance : ≥ 1MΩ (at 10 Lux)
- Light Resistance : 5kΩ to 20kΩ (at 100 Lux)
The LDR 8mm (Light Dependent Resistor) is a light-sensitive device that alters its resistance according to light intensity. In dark conditions, its resistance is high, while exposure to light reduces its resistance significantly.
Specification :
- Power Rating : 100mW
- Operating Voltage : Compatible with 3.3V to 5V systems
- Diameter : 8mm
- Material : Cadmium Sulfide (CdS)
- Dark Resistance : ≥ 1MΩ (at 10 Lux)
- Light Resistance : 5kΩ to 20kΩ (at 100 Lux)
- Spectral Peak : ~540 nm
