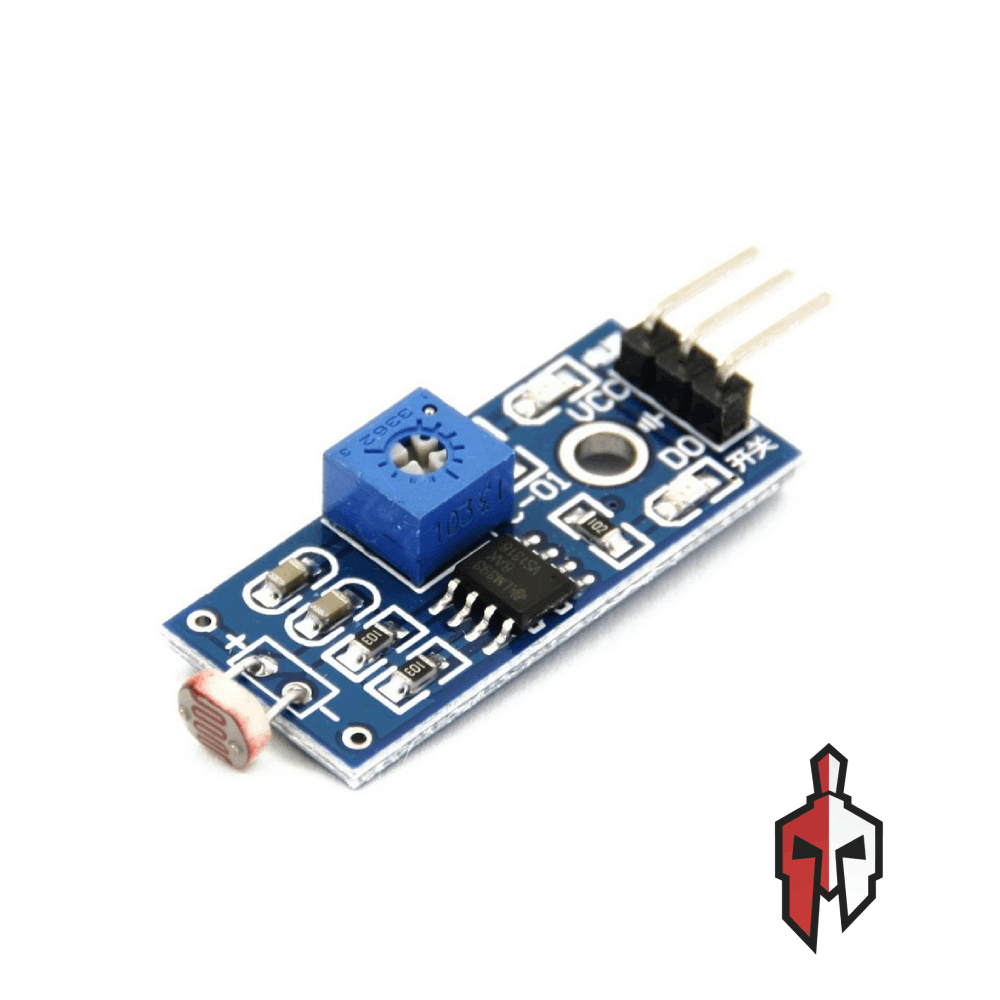

LDR Light Sensitive Module
Rs 300.00
Quick Info :
- Adjustable sensitivity (via blue digital potentiometer adjustment)
- Operating voltage 3.3V-5V
- Output Type : Digital switching outputs (0 and 1) -D0
- Using LM393 comparator chip, stable
LDR Light Sensitive Module is used to detect the presence of light / measuring the intensity of light. The output of the module goes high in the presence of light and it becomes low in the absence of light. The sensitivity of the signal detection can be adjusted using potentiometer.
Specification:
- Can detect ambient brightness and light intensity
- Adjustable sensitivity (via blue digital potentiometer adjustment)
- Operating voltage 3.3V-5V
- Output Type : Digital switching outputs (0 and 1) -D0
- With fixed bolt hole for easy installation
- Small board PCB size: 3cm * 1.6cm
- Power indicator (red) and the digital switch output indicator (green)
- Using LM393 comparator chip, stable
