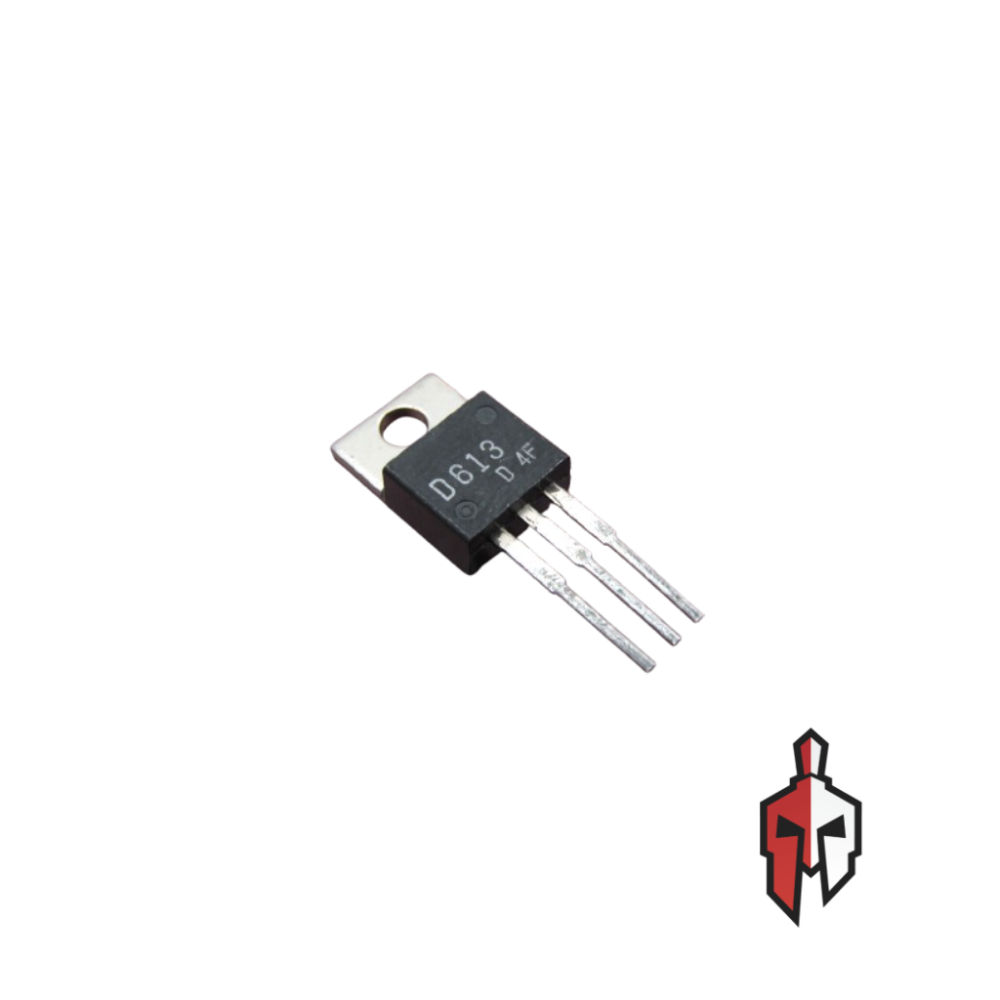

2SD613 NPN Transistor

The 2SD613 is a silicon NPN epitaxial planar transistor designed for low-frequency power amplification. It is commonly used in audio frequency amplifier output stages, particularly suitable for applications requiring 25 to 35 watts of output power.

Specification :

• Transistor Type : NPN Silicon Epitaxial Planar
• Package Type : TO-220
• Collector-Base Voltage  : 100V
• Collector-Emitter Voltage   : 85V
• Emitter-Base Voltage   : 6V​
• Collector Current  : 6A​
• Peak Collector Current   : 10A​
• Collector Power Dissipation   : 40W
• Junction Temperature  : 150°C​
