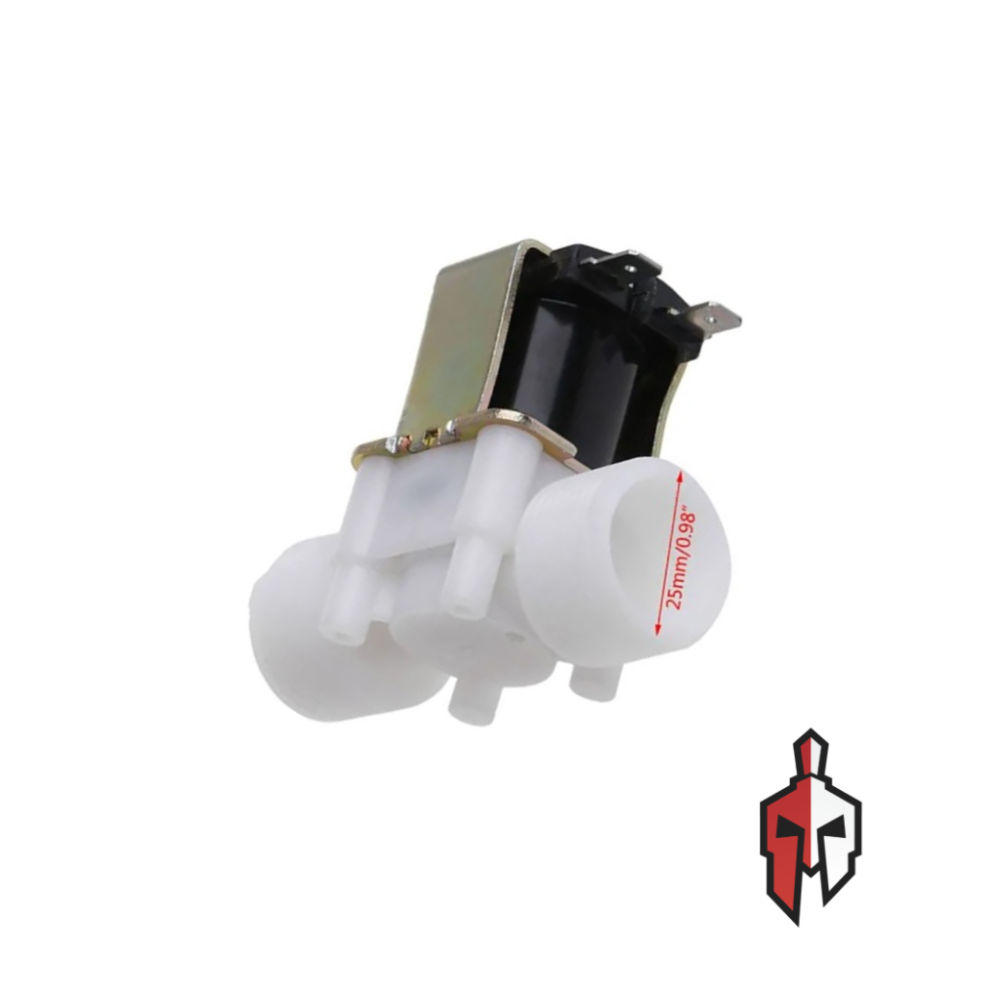

12V Solenoid Water Valve 1 inch

The 12V solenoid water valve (1 inch) is an electrically controlled valve designed for regulating water flow in pipelines. It operates using a 12V DC power supply, making it energy-efficient and suitable for various applications, including automatic irrigation systems, water dispensers, RO systems, and industrial fluid control.

Specification :

• Type : Normally Closed (NC) Solenoid Valve
• Material : Brass / Plastic
• Inlet/Outlet Size : 1 inch (25mm) BSP/NPT Thread
• Working Medium : Water, Air, Low Viscosity Fluids
• Operating Voltage : 12V DC
• Current Consumption : ~0.5A to 1A
• Coil Resistance : ~12Ω to 24Ω
• Power Consumption : ~6W to 12W
• Connection Type : Two-wire system
• Operating Pressure : 0.02MPa – 0.8MPa
• Flow Rate : ~20–50 L/min
